DC50M
Main Parameters
Please be note all the parameters below are just for reference. We provide easy & flexible customized service based on our skilled R&D team, workshop, and mold factory. Learn OEM Solution
Additional information
| Rated Voltage | |
|---|---|
| Max Head | 9M, 13M |
| Max Flow | 1200L/H, 1320L/H |
| Inlet Diameter | |
| Outlet Diameter | |
| Dimensions | 107×92.9×62.9mm |
| Noise | ~40dB |
| Liquid Temperature | -40-100°C |
Sub-Model List
| MODEL | VOLTAGE(V) | CURRENT(A) | MAX FLOW(L/H) | MAX HEAD(M) |
|---|---|---|---|---|
| DC50M-1290 | 12 | 4.3 | 1200 | 9 |
| DC50M-2480 | 24 | 2.2 | 1080 | 8 |
| DC50M-24130 | 24 | 3.3 | 1320 | 13 |
Dimensions

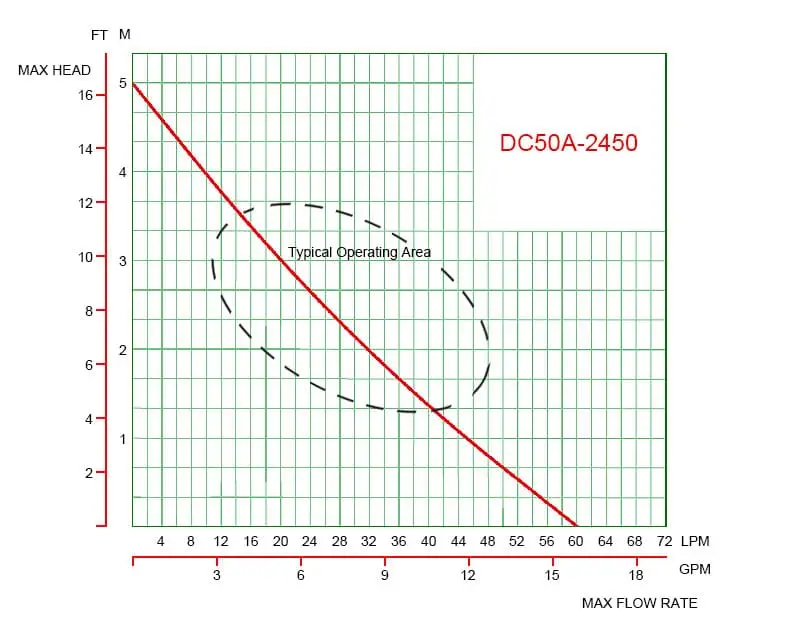

Performance Curve
Ask a Quick Quote
Make sure your email address is correct and accurate, so then We can contact you on time! Our customers are important to us, and we assure you that your data is safe with us.
Related products
Can not meet your needs? Go back to the Product Page to choose again.
Besides, the flow rate could be increased by paralleling pumps, and the head could be increased by connecting pumps in series. And we are also able to develop 36V or 48V pumps to improve the pump’s performance. Don’t hesitate to consult us immediately.
